1 Ton Per Hour Feed Pellet Mill Poultry Animal Feed Pellet Production Line

1 Ton Per Hour Feed Pellet Mill South Africa Feed Pellet Maker For Animal Feed Pellet Production Line

Product Description:

• Feed pellets are used in large, medium and small farms. The feed pellet production line is composed of centralized equipment. A single feed pellet machine can also make feed pellets, but the output is relatively small, suitable for household use or small farms. If the output of larger farms is relatively high, it is necessary to form a production line to make feed pellets. The production of feed pellets in this way has a large output, is convenient for storage, and saves time, labor and labor.

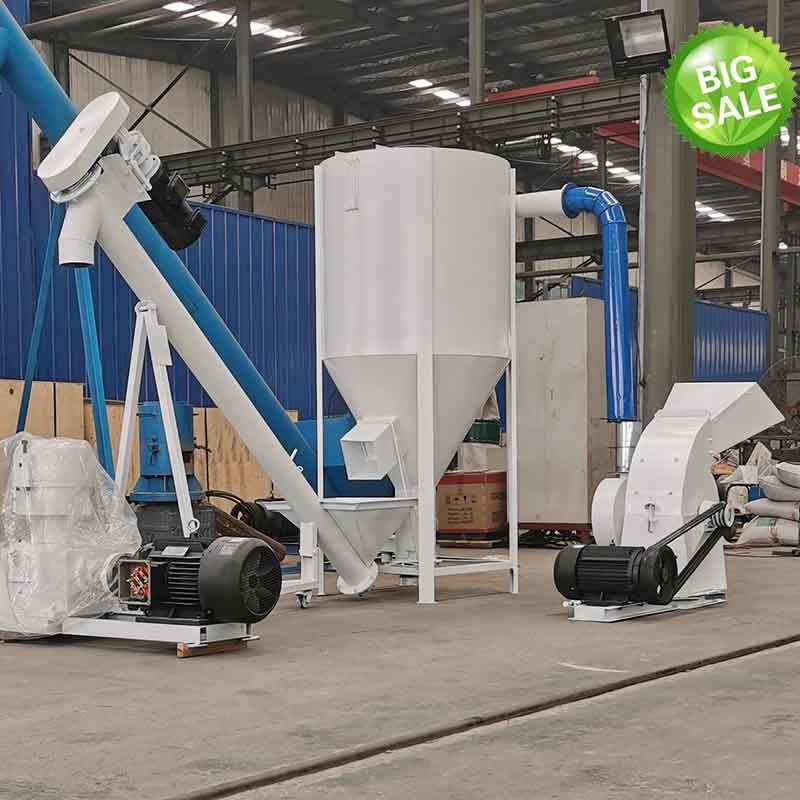

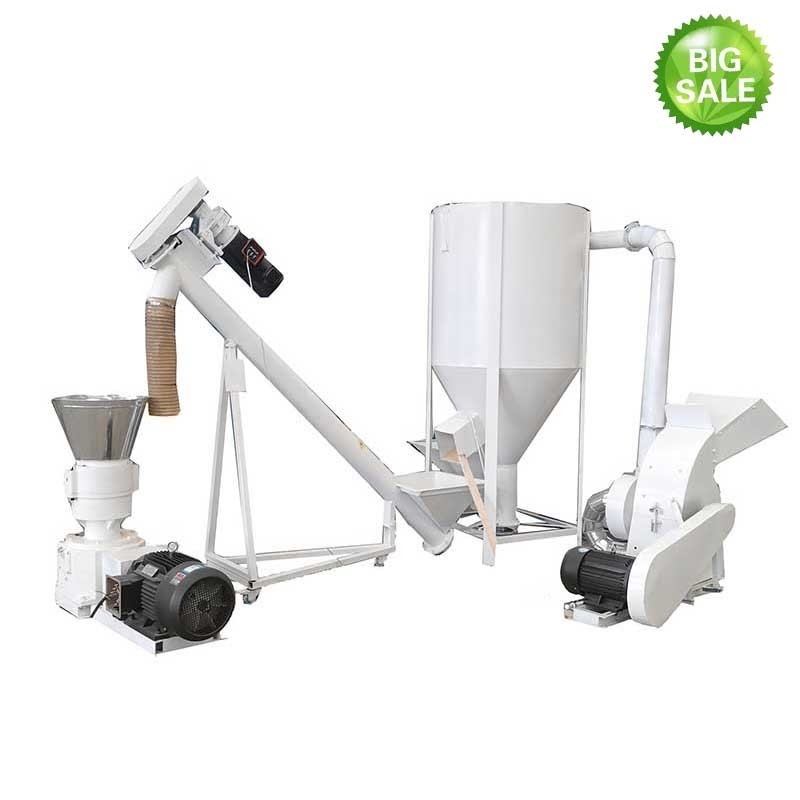

• The feed pellet production line includes equipment such as pulverizer, feed pellet machine, conveyor, feed mixer, feed cooler, packaging machine and so on. The configuration of the feed pellet production line is mainly composed of the above types, but the required equipment can be adjusted according to actual needs. The first is that the size of the equipment used is different according to the output. The second is that different pulverizers are equipped according to the different raw materials for crushing. Some pulverize grain and some pulverize rice straw. The conveyor adopts different conveyors according to the different raw materials to be transported. The forage needs to use the belt conveyor, and the granular things such as grain need to use the screw conveyor. The mixer has a horizontal mixer, a forage mixer, and a feed crushing and mixing machine to choose from. The feed cooler needs to be used when the output is relatively large, because the feed pellets have been heated to about 70 degrees during the production process, and the feed pellets that come out need to be cooled down so that they will not be damp and moldy and easy to store. There is no need to use a cooling machine for small production. After the feed pellets are ready, they are directly dried and stored after drying. The packaging machine is suitable for packaging various granular raw materials. Feed pellets cannot be used in general packaging machines, which will destroy the integrity of feed pellets. Because this is an open packaging machine, it basically does not destroy the integrity of the feed pellets. After packaging, they are stacked and stored, and they can be fed in winter or spring. It can also be fed when the feed is insufficient or the nutrition is not good.

Features of Flat Die Pellet Machine:

• The main features of a complete set of feed machinery and equipment:
• 1. There are two structural forms: integral steel frame type and floor type. The overall steel frame layout is compact, and the shape is beautiful and elegant; the floor type is easy to use and maintain.
• 2. The small and medium-sized complete feed machinery adopts manual metering and batching, and the equipment investment is small, economical and practical.
• 3. Large and medium-sized complete feed equipment adopts computer automatic metering and batching, with good batching accuracy, high degree of mechanization and automation.

Technical Parameters :

Applications:

• The feed pellet production line can use crushed grain, soybean meal, grass, licorice, rice straw, straw, crop straw, chicken feed, premix, feed additives, etc. to make feed pellets. Corn and wheat do not need to be crushed very much and then mixed with crushed grass, straw, etc. and then enter the feed pellet machine. The feed pellet machine becomes feed pellets after being heated and pushed by chickens and ducks. There is a cutter on the feed pellet machine, which can cut the feed pellets to the required length. The thickness of the feed pellets is determined by the aperture of the grinding disc. The larger the aperture, the thicker the feed pellets come out, and then the length of the feed pellets is determined by the cutter. Coarse and larger feed particles can be fed to large animals, such as pigs, cattle, sheep, horses, camels, deer, etc. Small feed pellets can be fed to chickens, ducks, geese, pigeons, rabbits, birds, pets and more.
