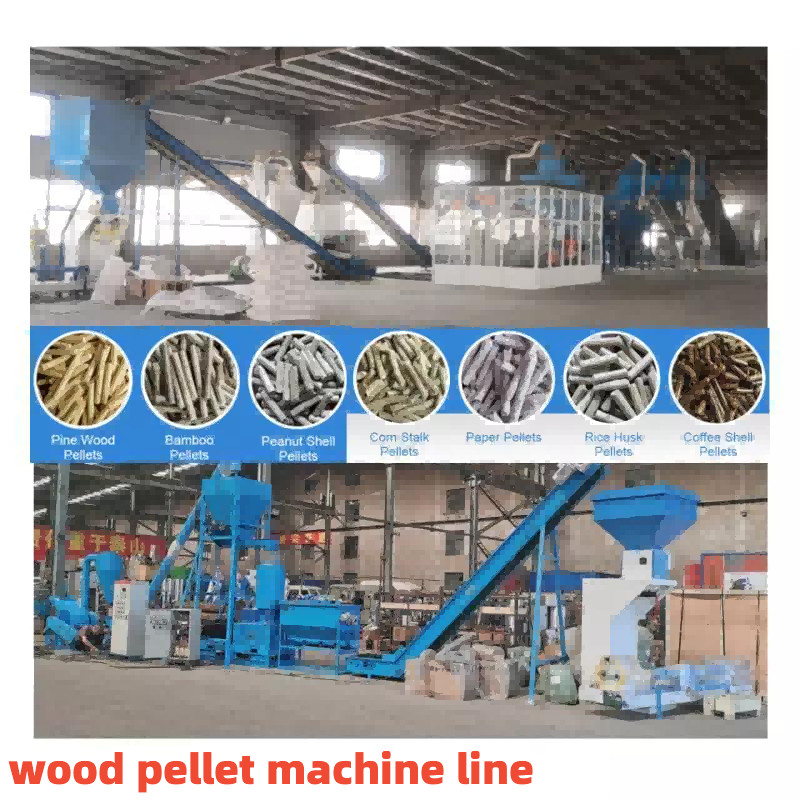

800-1000kg/h high density Wood Pellet Production Line /wood pellet mill
Product Description
Sawdust pellet machine refers to a new type of clean fuel that can be directly burned in granular form by mainly using agricultural and forestry waste such as sawdust and straw as raw materials, through crushing, drying, additive mixing, extrusion and other processes. It can be used as coal, Traditional energy alternatives such as diesel and natural gas.
Introduction of wood chip production line:
The wood pellet machine production line is developed by our company to establish an industrialized production line for biomass production. The complete set of equipment for wood pellet machine mainly includes: pulverizer, dryer, granulator, conveyor, cooling machine, packaging machine. The production of wood pellets consists of raw materials, crushing, drying, granulation, cooling, and finished product packaging. Every step of each equipment has strict operating specifications and quality requirements to ensure product quality.
Equipment needed:
log receiving and slicing system - crushing system - drying system - pelletizing system - cooling system - screening system - automatic packaging system
Process flow of wood pellet machine production line:
Sub-sieving: Screening to remove oversized materials and impurities to ensure that the raw materials meet the granulation requirements. Generally between 2-6mm.
Drying: Biomass fuel granulation requires less than 20% moisture, and the moisture is dried with a tumble dryer.
Granulation: The key step is completed by a biomass pellet machine. Zhongdebao pellets are of high quality and stable and high yield.
Cooling: Due to the extrusion work, the temperature of the biomass particles is relatively high, so they need to be cooled before packaging. Counterflow cooling machine, reasonable design, rapid cooling.
Screening: Qualified biomass particles are screened out through a vibrating grading sieve, and other unqualified products are recycled for reuse.
Packaging: automatic measurement, automatic sealing, saving time and effort, improving efficiency and reducing costs.
The dust removal equipment recycles the dust generated during the production process for granulation, reducing waste and increasing income.
Technical Parameters:
| Model |
Power
|
Capacity for wood pellet
|
Net/Gross Weight(kg)
|
|
ZLSP-R550B
|
55KW 380V 50HZ
|
800-1000KG/H |
1800-1890kg |
Flow Chart:
Some cases of our export abroad
Applications:

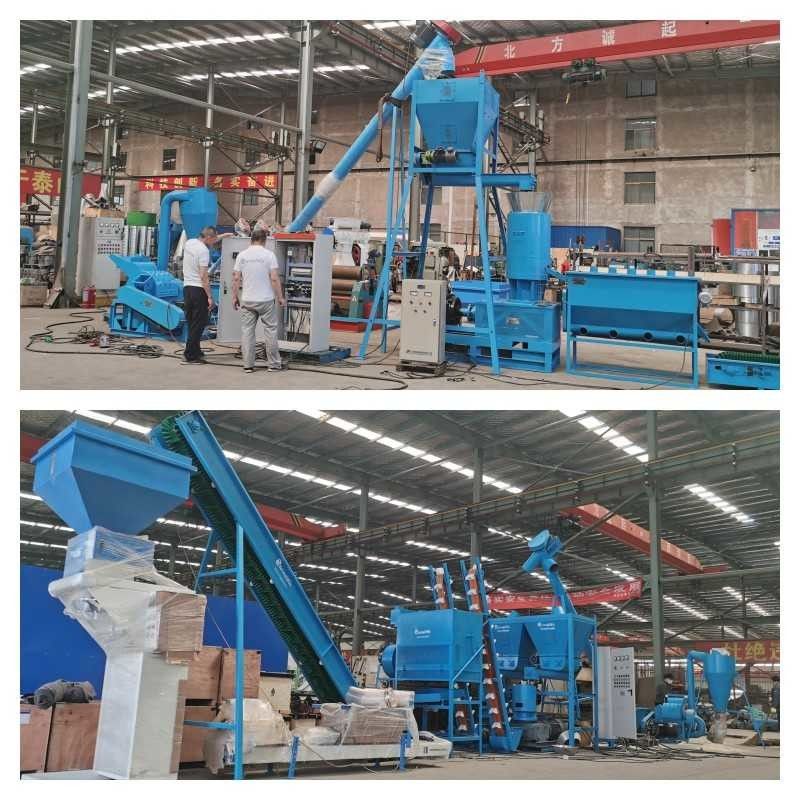

Production line related equipment
Packing and Shipping :
