1TPH-10TPH Biomass Wood Chips Eucalyptus Pine Birch Poplar Pellet Production Line
The processing of biomass fuel particles is not completed by a single particle machine, and is often determined by several factors.
1. The moisture content of raw materials is very strict for processing wood chips. The moisture content of raw materials should be controlled at around 15%. If the moisture content of raw materials is too high, it is easy to block the mold, and the particles cannot be produced. Even if they are produced, they are easy to break. If the moisture content of the raw material is too low or too dry, the viscosity is not good and it is not easy to form. If the raw materials meet the requirements, only one sawdust granulator is needed for production. If the moisture content does not meet the standard, a dryer is required, and the price increases again.
2. The specifications of the raw materials. If the raw materials are wood chips, an additional wood crusher needs to be added for crushing treatment. If the raw materials are large-sized wood, an additional wood chipper needs to be added to first break the non-standard wood into wood chips and then crush them, which will greatly differentiate the prices.
3. The production factor, the output of the sawdust particle machine, determines the model of the sawdust particle machine. The price naturally varies depending on the model. If the model of the sawdust particle machine has a production capacity of 2 tons or more, it is recommended to equip cooling equipment because when the sawdust particles are first produced, there is a temperature of 5-60 degrees Celsius. If they are directly bagged, the hot air can easily become damp after condensation, causing the particles to deform or disperse. The cooling equipment uses a fan to extract heat and steam, To meet the standard of direct bagging of particles, there is also an optional equipment after cooling, which is an automatic weighing and packaging machine. This can be selected according to customer needs.
The three major advantages of the eighth generation particle machine are:
1. It has a larger output and a particle forming rate of about 99%, which is much higher than ordinary particle machines.
2; Energy saving, heavy-duty integrated hard tooth reducer, low power consumption, high torque, and high performance.
3. Durable, automatic lubricating oil supply device, capable of continuous production 24 hours a day.
The biomass granulator is suitable for a wide range of raw materials. There are mainly two categories: wood branches, miscellaneous wood bark, construction waste wood, furniture factory scraps, etc. 2. It is a type of crop straw, peanut husk, rice husk, etc. that has been pre processed and processed into 8mm 3500-4500 kcal. It has the advantages of small size, combustion resistance, and convenient transportation, and can replace coal as the main fuel for boilers. It can also be used in fields such as domestic stoves, hot water boilers, and industrial boilers.

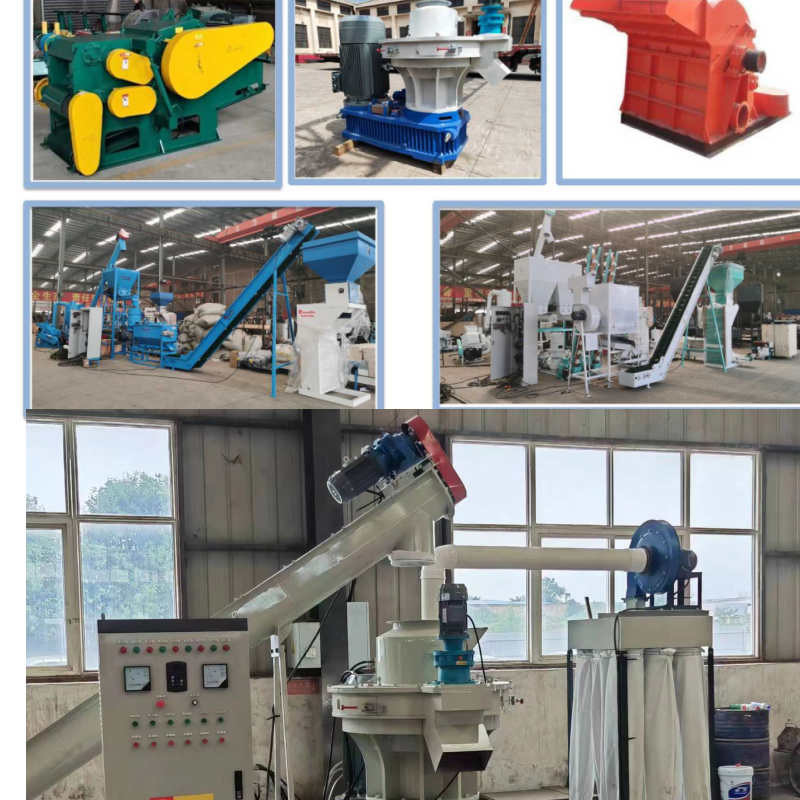

(Chipping---Grinding---Drying---Pelleting---Cooling&Sifting---Packing process).
On the market, there are two types wood pellet machine,flat die and ring die(horiztonal type and vertical ring die pellet
machine)Wood pellets machine also called wood pellet making machine,pellet press machine, is a biomass equipment which is used to press small size wood into 6/8mm wood pellets. Our wood pellets machine belongs to the 8th Vertical ring die.Double layer, both side can be used, enhanced the lifetime of spare parts and reduce cost.
The main advantages of the vertical ring die pellet machine :
1. Feeding vertically and directly to pelletizing room .
2. Die static , rollers rotating , materials centrifugal , evenly distributed around .
3. Double-layer dies , up and down dual use , high capacity and energy saving .
4. Ring die , vertical structure , conducive to the pelletizing room cooling .
5. Independent output device , ensure formation rate of pellets .
6. Independent lubrication system , bring precise and automatic lubrication to bearings .
7. Feeding system is equipped with inverter which can bring stepless adjustable feeding speed .
Our ring die pellet machine have below models :
|
Model
|
|
|
|
|
|
|
Power(kw)
|
55+0.37
|
90+1.5+0.37
|
110+2.2+0.37+0.65
|
132+2.2+0.37+0.65
|
160+2.2+0.37+0.65
|
|
Voltage
|
380v/220v 50hz 60hz customized
|
|
Rotation speed
|
1450r/min
|
|
Pellet size
|
4-12mm
|
|
Pelletize temperature
|
40-80 ℃
|
|
raw material moisture
|
|
|
Weight
|
2.9T
|
|
|
|
|
|
Size
|
2160*1000*1850
|
2300*1250*2000
|
3100*1300*2100
|
2200*1200*1750
|
2460*1400*2000
|
|
Ring die inner diameter
|
450
|
560
|
600
|
600
|
700
|
|
Capacity
|
0.8-1T/H
|
1.2-1.5T/H
|
1.8-2T/H
|
2-2.5T/H
|
2.5-3T/H
|
For the pellet mold/die the diameter generally will be 6mm or 8mm .
The finished sample pellet for your reference :
