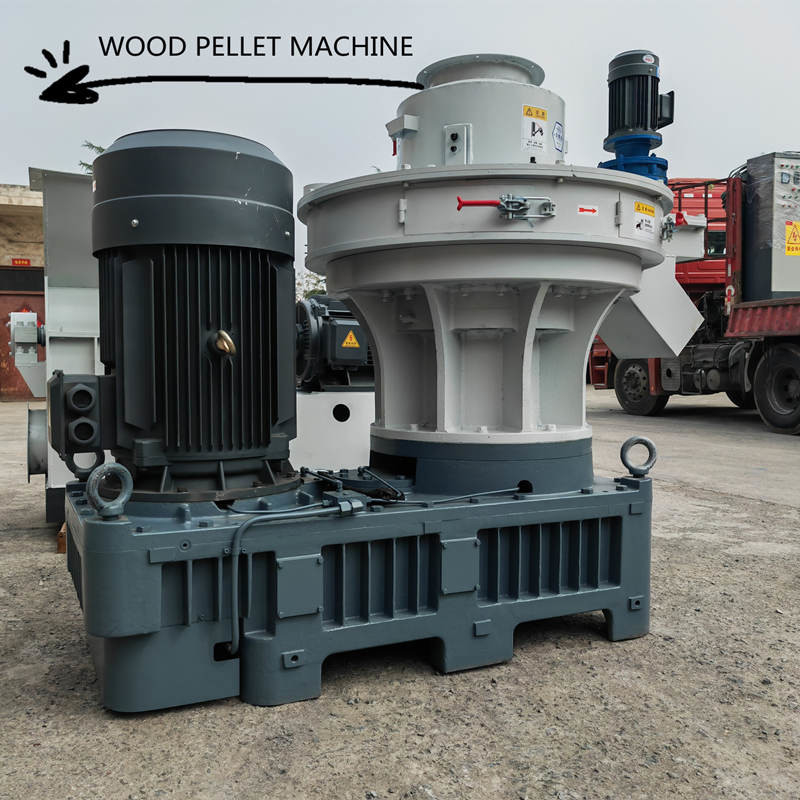

132KW Vertical Ring Die Wood Pellet Mill Machine 2t/h production capacity
Product Description:
1. Working principle and structural difference The vertical ring die granulator has a large shaft perpendicular to the ground, the mold is fixed, and the rotation of the large shaft drives the pressure roller to rotate. The horizontal ring die granulator has a large shaft parallel to the ground, and the mold rotates with the large shaft to drive the pressure roller to rotate. This structure causes the main shaft and the main shaft bearing of the horizontal ring die pellet machine to be affected by gravity for a long time, and the serious wear causes the machine to tremble, and the replacement frequency of the main shaft and the main shaft bearing is relatively high
2. Feeding method. The feed port of the vertical ring die pellet machine is facing upwards. The material enters directly and is evenly scattered around by the centrifugal force generated by the rotation of the large shaft. The mold is evenly stressed, the pressure roller bearing is evenly stressed, and the main motor is relatively stable.
| Model |
EWVR450 |
EWVR560 |
EWVR600 |
EWVR600A |
EWVR700A |
| Power(kw) |
55+0.37 |
90+1.5+0.37 |
110+2.2+0.37+0.65 |
132+2.2+0.37+0.65 |
160+2.2+0.37+0.65 |
| Voltage |
380v/220v 50hz 60hz customized |
| Rotation speed |
1450r/min |
| Pellet size |
4-12mm |
| Pelletize temperature |
40-80 ºC |
| Raw material moisture |
15-25% |
| Weight |
2.9T |
5.6T |
6.5T |
7T |
8T |
| Size |
2160*1000*1850 |
2300*1250*2000 |
3100*1300*2100 |
2200*1200*1750 |
2460*1400*2000 |
| Ring die inner diameter |
450 |
560 |
600 |
600 |
700 |
| Capacity |
0.8-1t/h |
1.2-1.5T/H |
1.8-2T/H |
2-2.5T/H |
2.5-3T/H |
Product Features:
Vertical feeding, directly in place.
The mold is stationary, the pressure roller rotates, and the material is centrifugally distributed around.
The mold has two layers, which can be used up and down, reducing costs and increasing efficiency; it can also be used in dual-use, high-yielding and energy-saving;
Ring mold, vertical structure, which is good for heat dissipation and cooling in the granulation chamber;
The independent discharge device ensures the molding rate of the pellets.
The independent automatic lubrication system brings good lubrication effect to the bearing.
The feeding system has a frequency conversion device to realize the stepless adjustment of the feeding speed to meet different materials.
Payment:
Pay 30% deposit and we start production.
Transportation:
We pack by wooden case or whole container shipment. Shipping to your country by sea, rail, etc.
FAQ:
Q:I know very little about this machine, How should I make a choose?
A:please tell us your specific requirement, we will offer the most appropriate model for you,you can contact us at any time.
Q: What if the spare parts are broken?
A:For each machine,we will have several parts that can be replaced, have a three years warranty on the core parts.
Q:I don't know how to install and use it?
A:We will offer video and online instruction.
Q:Do you have a warranty?
A:Yes,we have one year warranty for our products.
Q:If the machine has a little mistake when produce and can not solve,what should i do?
A:Please contact us immediately,by email,WeChat,or telephone,our worker will give you the solution.
