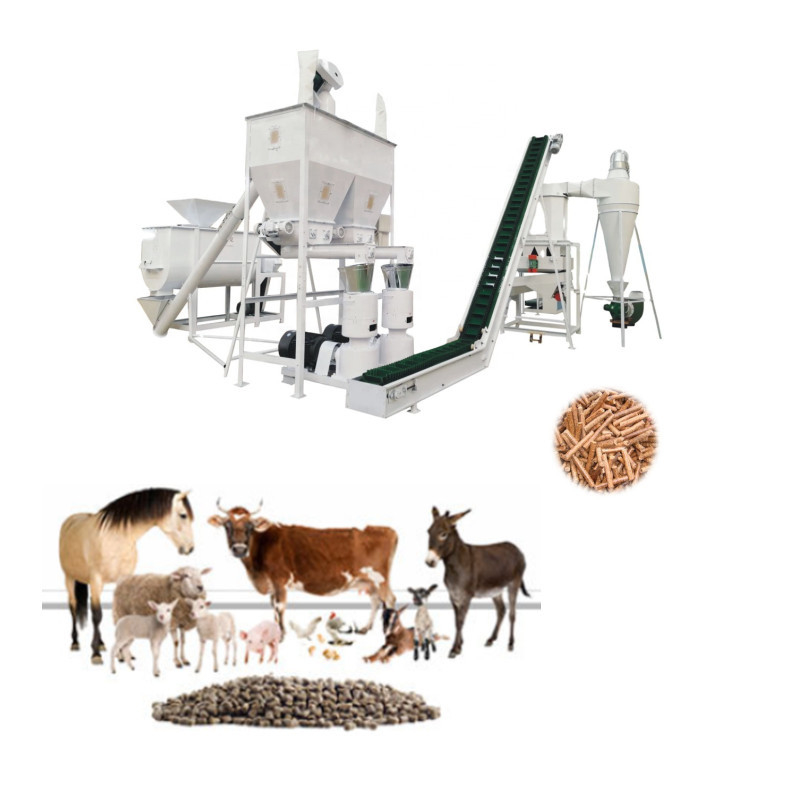

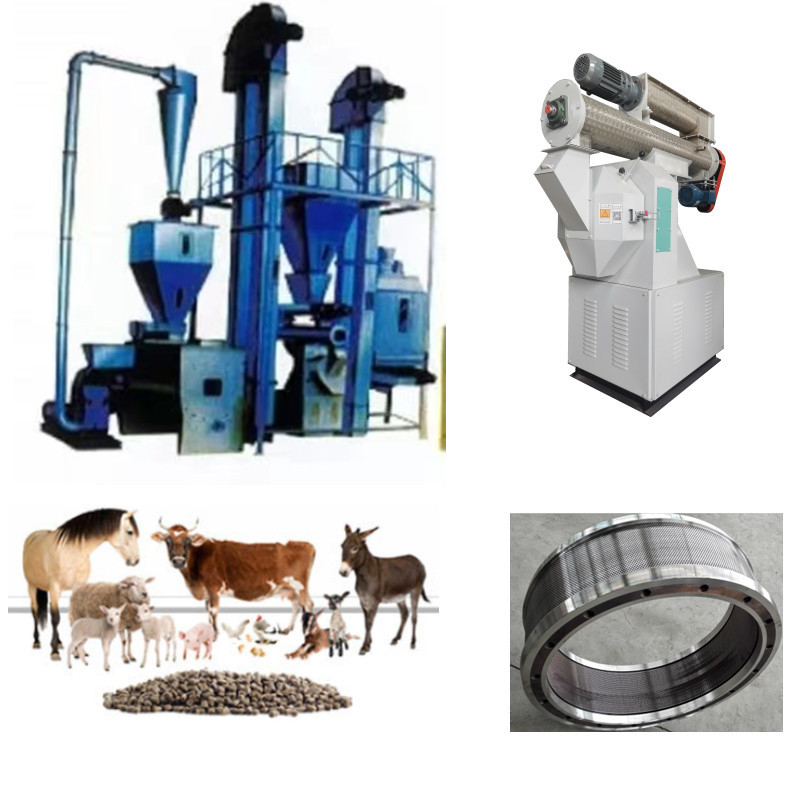

45KW Ring Die Feed Pellet Machine Sheep Cattle Feed Pellet Machine

The rotor of the pulverizer is corrected by dynamic balance, equipped with NSK bearings, and the hammer blades are weighed by the electronic scale and matched into groups to ensure that the weight of the hammer blades in each group is consistent. With its own fan, after increasing the blades, the output of the pulverizer is increased.

102. Bag filter

￠200*16

Equipped with mechanical flannel, diameter 200mm, length 1500mm, with ash bucket below.

HJJ80

Capacity: 1000kg/batch, brand bearing,

double row chain drive

Mixing time: 180-240s

Blades and chassis ensure extremely low retention to prevent cross-contamination of the material.

The shaft end is sealed by an oil seal to ensure that the material is leak-free

￠130

1.5kw

Equal diameter equal pitch blades, high speed, high output

1m³

The A3 board is made with agrille

303. Feeder

The conditioner

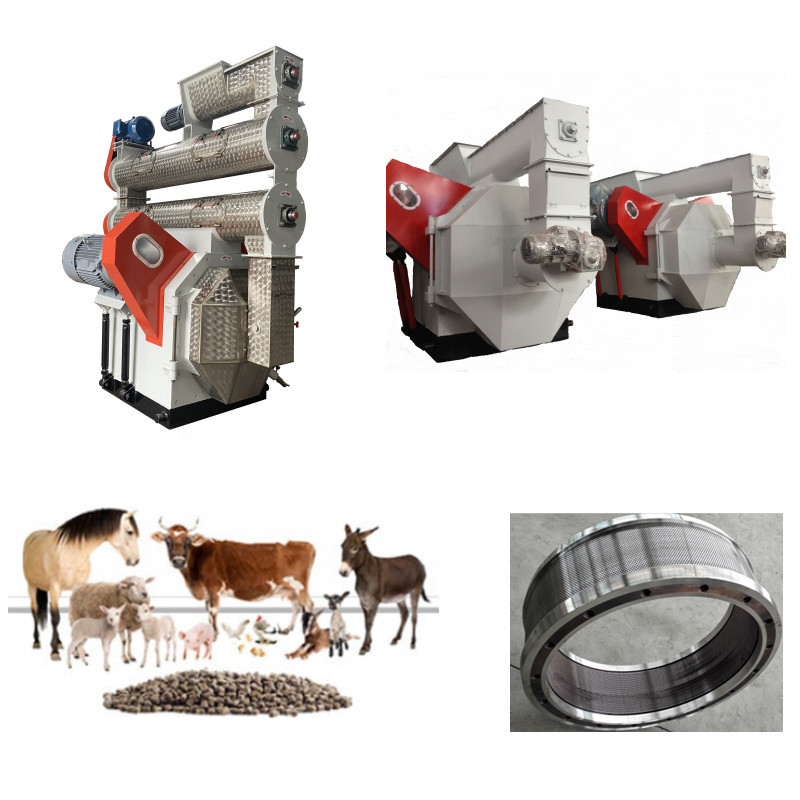

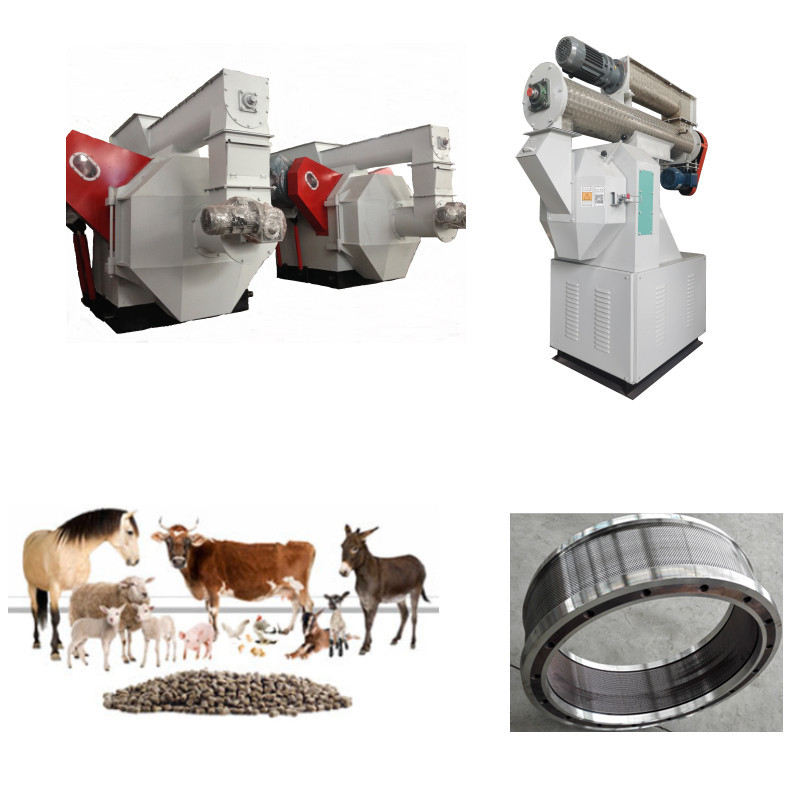

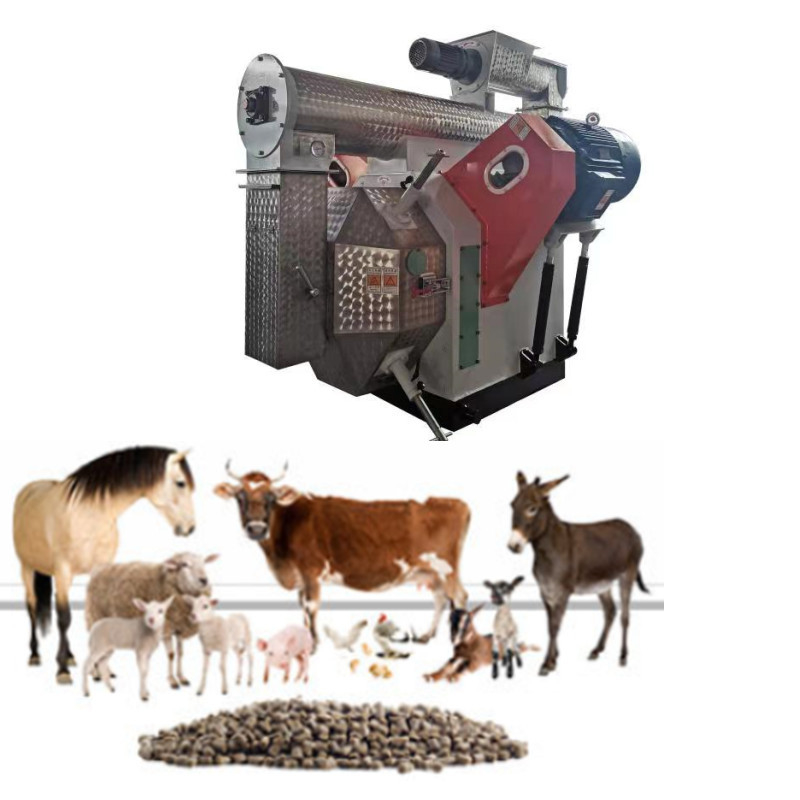

Pellet machine

HKJ25

22.00+1.10

+0.75

=23.85kw

The machine uses inverted triangular strong belt drive,with large torque,smooth transmission,low

High-quality bearings ensure smooth and reliable performance

The addition of large rollers directly improves production capacity and combined with cylindrical roller bearings quickly and easily adjusts the gap between the ring mold and the roller

The machine is equipped with a diameter of 3.0 carbon steel ring mold,customers can according to their own needs to purchase additional needs of the ring

Elevator

XTDTG30/15

The work is stable and reliable, easy to repair and clean Equipped with an observation port

Three layers of polyester plastic belt

Steel plate head wheel,durable

Cooler

NKSL-3

0.75+0.75+

0.20=1.70kw

The falling direction of the partcle material and the reverse movement of the cold air ensure that the product is gradually cooled from the bottom up,which results in better cooling results

Punch-type screen,the wind effect is better

Octagonal case to ensure tjat the material is free of residue

Cyclone

￠700

The A3 board is made with agrille

4-72

5.50kw

The wind leaves are dynamically balanced and started in direct connection with a single machine

SSGL15*80

4.00kw

Metal sloping toothed wire rollers toothed wire rollers,heat-treated at high temperatures to ensure service life Suitable for chicken opening material,large and small adjustable

The feed flow is adjustable to ensure productivity

4. spraying, cooling, screening and packaging section :

PD40

1.50kw

RV reducer direct drive, PV skirt belt, to ensure that the material leakage. Smooth operation and no noise

402. Rotatry virbrating sieve

SFJH80*2

1.50kw

The newly designed type grading sieve runs smoothly

Two -layer wooden frame,three-layer screen,to ensure that large pieces of material,finished material,powder separation clean

With elastic nylon support plate,torque is large and service life is long

PD40

0.5m³

The A3 board is made with agrille

405.Auto-pack scales

Charter flights

LCS50

2.20X2=

4.40kw

Unique shock-proof device ensures measurement accuracy,fast packaging and speeds up to 220packs/h

External adjustment function,easy to repair

The main components are imported and have a long service life

1.10kw

PV belt drive ensures long service life

Direct drive with RV gearbox

5: Electrical control center

For MCC cabinet, Chint electric appliance is used as the main electrical appliance, red wave is used as the button, step-down start is used for motors above 15kw, and process flow simulation screen is used for the panel of central control cabinet, which is convenient to use and solves Misoperation.

6. Auxiliary equipments:

602. Steam generator

0.10T,

0.7Mpa
